How to Design Parts for Tighter Tolerances
Table of Contents
- Understanding Tight Tolerances and Why They Matter
- Design for Manufacturing Tolerances: Setting Yourself Up for Success
- Geometric Dimensioning and Tolerancing (GD&T) Fundamentals
- Managing Tolerance Stacking and Cumulative Error
- How to Avoid Layer Lines in 3D Printing for Tighter Tolerances
- Material Selection and Thermal Expansion Effects
- Tolerance Budgeting for Assemblies
- Inspection and Quality Assurance for Tight Tolerances
- Frequently Asked Questions
Last Updated: September 17, 2026
Understanding Tight Tolerances and Why They Matter
How to design parts for tighter tolerances starts with understanding what tolerances actually control. A tolerance is the allowable variation in a dimension, the range between the maximum and minimum acceptable size for a feature. When you design parts for tighter tolerances, you're shrinking that range, which means less room for error during manufacturing and more precision in the final part.
Tight tolerances matter because they determine whether parts fit together, function as intended, and meet performance requirements. A shaft that's supposed to spin smoothly inside a bearing needs tight tolerances on both the shaft diameter and the bore. A decorative engraved sign needs tight tolerances on depth and letter spacing to look intentional rather than sloppy. The tighter the tolerance, the more control you have over the outcome, and the more challenging the manufacturing becomes.
What Counts as a Tight Tolerance
Tolerance tightness is relative to the part size and manufacturing process.
The key is matching tolerance to capability. A process can only hold a tolerance if the equipment, material, and technique support it. At VanderLab, we work with clients who understand this tradeoff: tighter tolerances require more time, more skill, and sometimes a different manufacturing method entirely.
The Real Cost of Tight Tolerances
Tighter tolerances cost more because they demand more from the process. A CNC machine cutting to tight tolerances needs slower feed rates, sharper tools, and more frequent tool changes. 3D printed parts with tight tolerances often require post-processing, sanding, reaming, or vapor smoothing, to achieve precision. Material waste also increases when tolerances are tight.
Cost also includes planning (analyzing dimension stacking and functional surfaces), inspection (using coordinate measuring machines or precision calipers), and scheduling (tight tolerance jobs take longer and tie up equipment).
Understanding this cost upfront prevents the common mistake of specifying tolerances tighter than the function requires. If a part only needs ±0.050 inches to work, specifying ±0.010 inches wastes money with no benefit.
Design for Manufacturing Tolerances: Setting Yourself Up for Success
Design for manufacturing tolerances means choosing tolerances during design that the manufacturing process can actually hold. Many designs fail because engineers specify tolerances based on function without considering what the shop can deliver.
Involve manufacturing early. Before finalizing tolerances, talk to the shop about what they can hold reliably, what costs extra, and what design changes would ease manufacturing without sacrificing function.
Choosing Datums and Datum Reference Frames
A datum is a reference surface, edge, or point from which dimensions are measured. When designing parts for tighter tolerances, datums are critical because all other dimensions depend on them.
Choose datums that are:
- Functional surfaces, the surfaces that actually matter for how the part works
- Accessible during manufacturing, the shop needs to hold and measure from them
- Repeatable, the same surface every time, not a feature that might vary
A datum reference frame is the coordinate system built from datums, typically three perpendicular planes establishing X, Y, and Z axes. The shop uses this frame to position the part and measure all other features relative to it.
Bilateral vs. Unilateral Tolerances
A bilateral tolerance allows variation in both directions from the nominal dimension (e.g., 0.500 ± 0.005 inches). An unilateral tolerance allows variation in only one direction (e.g., 0.500 +0.010 / -0.000 inches).
Choose unilateral tolerances when one direction of variation causes problems. A shaft in a bearing uses unilateral tolerance because being too large won't fit, but being smaller is acceptable. A hole for a fastener uses unilateral tolerance because being too small prevents fit, but being larger is acceptable.
Bilateral tolerances are simpler to manufacture because the nominal dimension is centered in the tolerance range. Use them when variation in either direction is equally acceptable.
Geometric Dimensioning and Tolerancing (GD&T) Fundamentals
Geometric dimensioning and tolerancing (GD&T) is a standardized language using symbols to control form, orientation, location, and runout. This prevents misinterpretation and lets the shop understand exactly what matters for function.
GD&T is valuable when designing parts for tighter tolerances because it lets you specify what needs to be tight and what can be loose, for example, hole location at ±0.010 inches but diameter at ±0.050 inches if function only cares about location.
Reading and Applying GD&T Symbols
GD&T symbols control specific aspects: flatness (surface flatness), perpendicularity (squareness to a datum), concentricity (hole centering), and runout (rotating feature wobble).
Each symbol appears in a feature control frame stating the symbol, tolerance value, datum, and modifiers. This tells you exactly what's controlled and how tight the tolerance is.
Use GD&T symbols to communicate intent clearly. Instead of "make this hole as centered as possible," specify concentricity of 0.010 inches relative to the outside diameter. This clarity reduces mistakes and rework.
Managing Tolerance Stacking and Cumulative Error
Tolerance stacking occurs when multiple tolerances accumulate to create larger overall variation. Five features at ±0.010 inches each could reach ±0.050 inches total in the worst case. Understanding stacking is essential when designing parts for tighter tolerances.
Tolerance stacking analysis calculates worst-case (all tolerances stacking simultaneously) and statistical accumulation (root-sum-square, assuming random distribution).
How to Avoid Layer Lines in 3D Printing for Tighter Tolerances
3D printing builds parts in layers, creating surface texture and dimensional variation. Layer lines become a concern when designing parts for tighter tolerances, a part at 0.200 mm layer height has visible steps that can prevent tight fits and affect appearance.
Layer Height, Orientation, and Surface Finish
Layer orientation dramatically affects tolerance capability. Horizontal features have layer lines perpendicular to the surface; vertical features have layer lines parallel to the surface, which is less visible and easier to finish.
Post-Processing Impact on Final Tolerances
Post-processing changes dimensions: sanding removes material, chemical vapor smoothing softens lines and rounds edges, reaming enlarges holes. Account for post-processing in your design when targeting tight tolerances.
Material Selection and Thermal Expansion Effects
Material choice affects tolerance capability. Different materials expand and contract at different rates with temperature changes. Aluminum expands more than steel; plastics expand more than metals. Thermal expansion becomes a real constraint when designing for tight tolerances.
Tolerance Budgeting for Assemblies
When multiple parts assemble together, tolerance budgeting allocates total allowable variation across all parts. If an assembly needs ±0.050 inches total clearance, allocate ±0.020 inches to the shaft, ±0.015 inches to the bore, and ±0.015 inches to the housing.
Inspection and Quality Assurance for Tight Tolerances

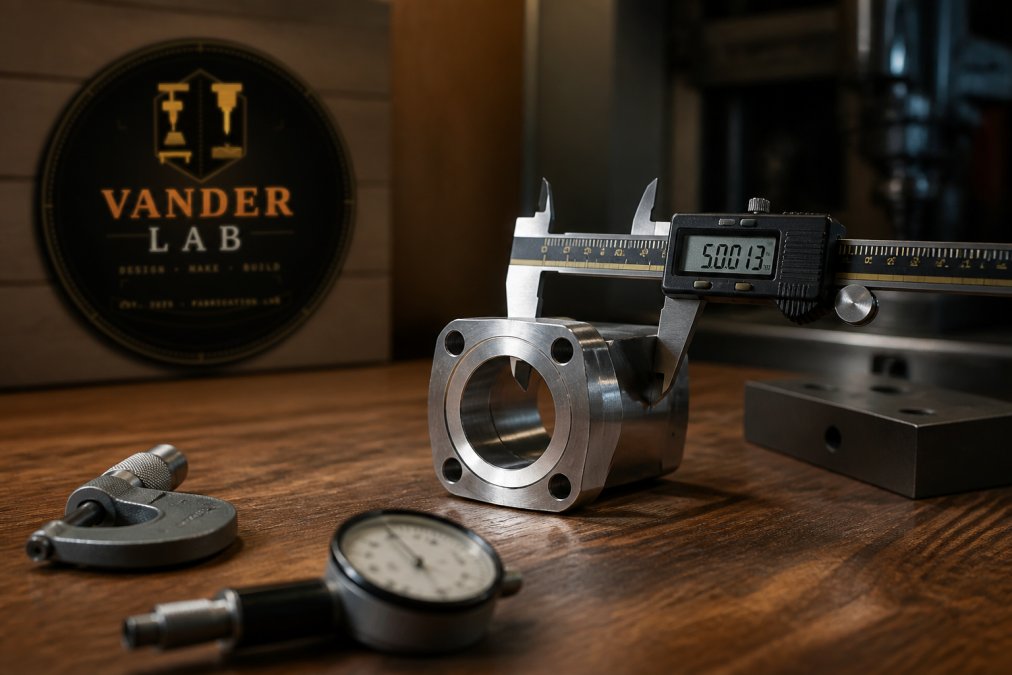

Parts made to tight tolerances must be inspected to verify specification. Inspection methods range from go/no-go gauges to coordinate measuring machines. Your choice affects cost and confidence.
Frequently Asked Questions
Is 0.01 inch a tight tolerance?
Yes, a tolerance of 0.01 inch (ten thousandths) is considered tight for many machining applications. It often requires equipment with good repeatability and skilled setup. For 3D printing, achieving such a tolerance can be challenging without post-processing. Context matters: for a simple bracket, it might be tight; for a precision bearing surface, it could be moderate. Compare your tolerance to the process capability of your chosen manufacturing method before finalizing your design.
What are the four types of tolerances?
The four main tolerance types are dimensional (size limits), geometric (form, orientation, location), surface finish (roughness), and material property tolerances (hardness, density). Dimensional tolerances control length and width. Geometric tolerances control flatness, perpendicularity, and runout. Surface finish specifies roughness in microinches. Material tolerances define acceptable variation in material properties. All four work together to ensure parts fit, function, and last as intended.
How do material properties affect achievable tolerances?
Material properties directly impact tolerance capability. Metals like aluminum and steel machine tightly but expand with temperature changes, requiring thermal compensation. Plastics like PLA and PETG shrink as they cool after 3D printing, affecting final dimensions. Softer materials deflect under clamping forces, making tight tolerances harder to hold. Thermal expansion coefficients matter: a steel part might grow 0.0006 inch per inch per 100°F temperature change. Choose materials that match your tolerance needs and operating environment.
Why do tighter tolerances increase manufacturing costs?
Tight tolerances demand precision equipment (CNC machines, coordinate measuring machines), slower cutting speeds, more frequent tool changes, and skilled setup. Each tighter tolerance level requires more inspection and scrap rates rise if parts fall outside limits. Tighter tolerances on a simple feature can significantly increase costs because of machine time, tool wear, and quality checks. Tolerance budgeting and design for manufacturing help balance cost and function without over-specifying.
How can I specify tolerances on engineering drawings?
Specify tolerances using limit dimensions (e.g., 2.000 to 2.010 inch), plus-minus notation (2.005 ± 0.005 inch), or geometric dimensioning and tolerancing (GD&T) symbols. Limit dimensions show the maximum and minimum acceptable sizes. Plus-minus notation centers the tolerance around a nominal value. GD&T controls form, orientation, and location relative to datum reference frames. Always define datum planes (usually the surfaces that will be clamped or measured against). Clear, unambiguous drawings prevent costly mistakes and rework.
What is tolerance stacking and how do I avoid it?
Tolerance stacking occurs when multiple tolerances add up, causing cumulative error in assemblies. If Part A has ±0.005 inch tolerance and Part B has ±0.005 inch, the total variation could be ±0.010 inch when assembled. Avoid stacking by using a single datum reference frame for all related features, specifying tighter tolerances on critical surfaces, and using tolerance budgeting to allocate allowable error. Analyze worst-case and statistical scenarios to confirm assemblies will function across the full tolerance range.
Can I achieve tight tolerances with 3D printing?
3D printing can achieve tight tolerances with careful design and post-processing. Reducing layer height, orienting parts to minimize bridging, and avoiding layer lines improves accuracy. Post-processing like sanding, coating, or vapor smoothing can tighten tolerances further. For very tight tolerances, CNC machining may offer more reliability than 3D printing alone.
